Slide 16 of 48
Notes:

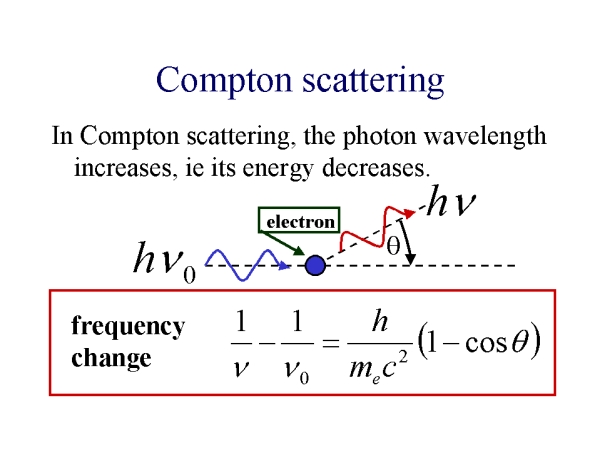

The frequency change of the photon in the Compton scattering process is given by the relationship shown, where m_e is the mass of an electron, c is the speed of light and h is Planck’s constant. nu_0 is the initial frequency of the photon and nu is the final energy (ie after being scattered).
