Slide 33 of 48
Notes:

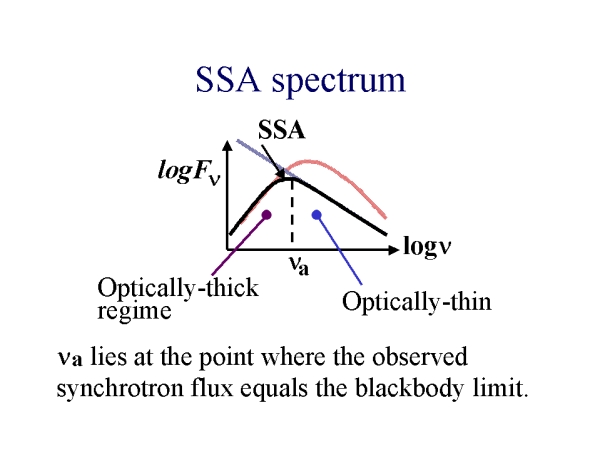

At an observed frequency nu_a, the observed synchrotron flux equals the blac body limit. Below nu_a then, the source becomes optically-thick (ie blackbody like) and the spectrum turns over, following the Rayleigh-Jeans tail.
