The UVOT baffle sits inside a 2 meter telescope tube. The baffle contains and protects the UVOT
telescope, and it only allows light from the target source to reach the telescope mirrors.

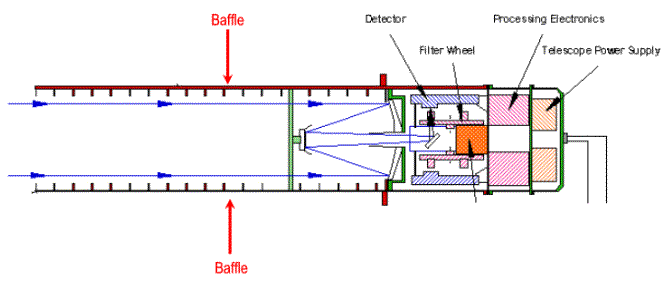

The schematic below demonstrates how the baffle fits together with the UVOT mirrors, filterwheel,
detector, and other electronics.
|
|
|
