Early data from ReSIK

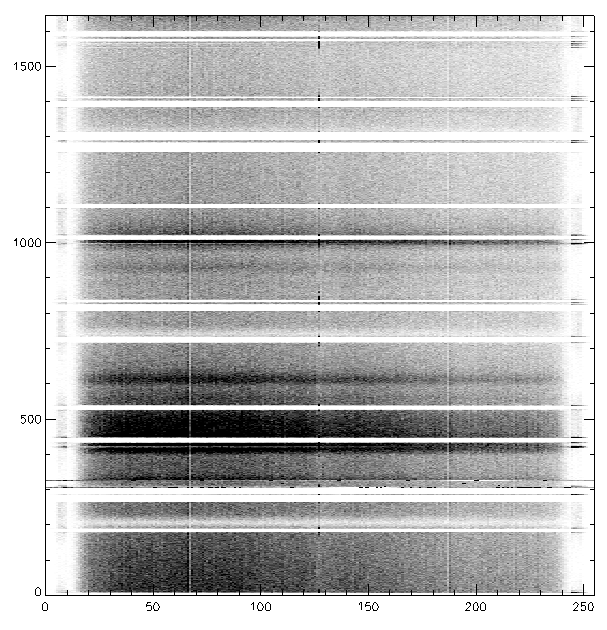

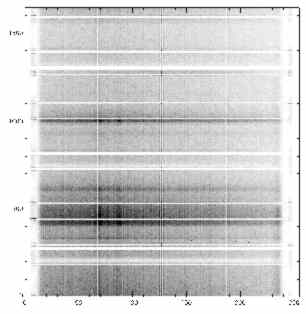

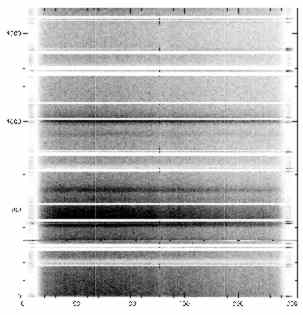

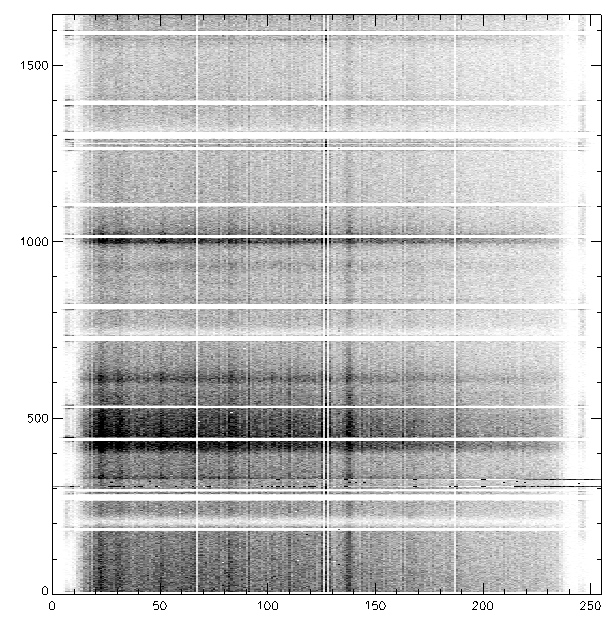

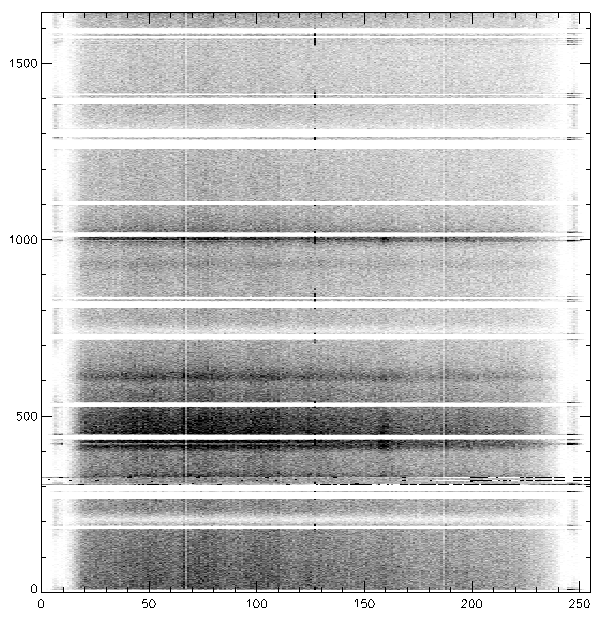

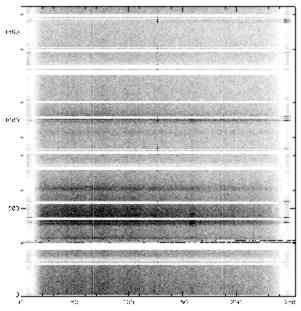

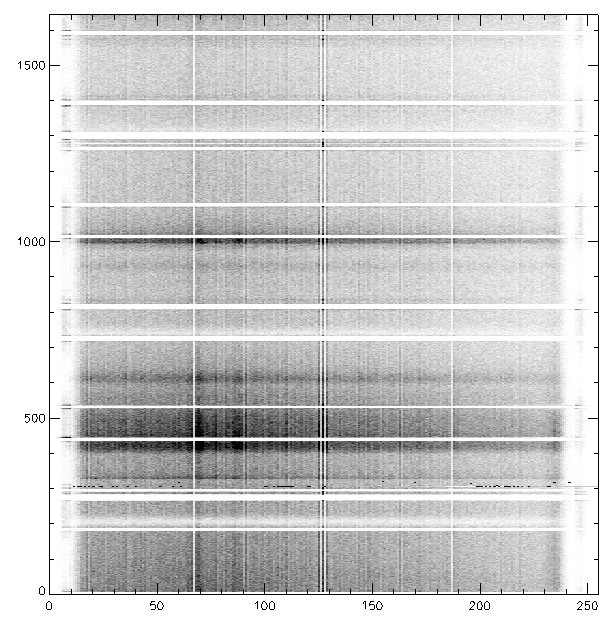

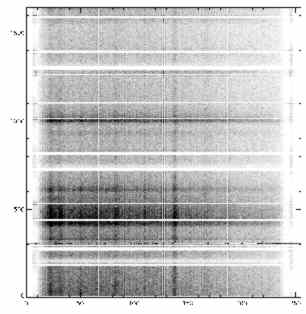

These data show the first extended period of observation (time is the vertical axis) over the spectral range (horizontal axis) of the four channels (four plots) of Koronas-F/ReSIK.
Data were obtained during 24-25 August 2001.
Wavelength range stated in Angstroms.
0 - band: 3.821 - 4.326 Si 111 |
1 - band: 4.960 - 6.086 Qu 1010 |
2 - band: 3.369 - 3.879 Si 111 |
3 - band: 4.307 - 4.890 Qu 1010 |
