OM telescope

The OM telescope consists of an f/12.7 modified Ritchey Chrétien optics (see schematic in Fig. 66). From the primary mirror incoming light is reflected onto a secondary, from where it is reflected onto a rotatable $45^\circ$ flat mirror located behind the primary, which can direct the beam onto one of two detector assemblies operated in cold redundancy.

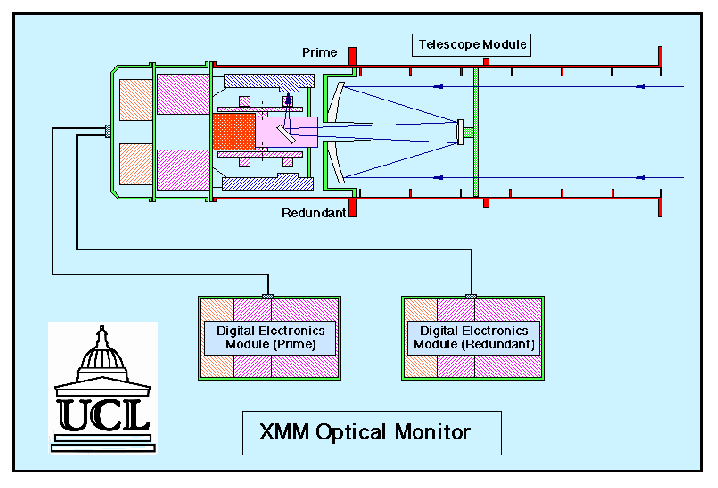

Figure 66: The light path in XMM's optical/UV telescope, OM.
